Description
Features:Motherboard | ATX | Socket 1155 | Intel Z68 Chipset | 4x DDR3 | SATA-300 | SATA-600 | PCI | PCIe 2.0 x16 | PCIe 3.0 x16 | USB 2.0 | USB 3.0 | eSata | HDMI | DVI-D | VGA
Click here for the supported CPUs

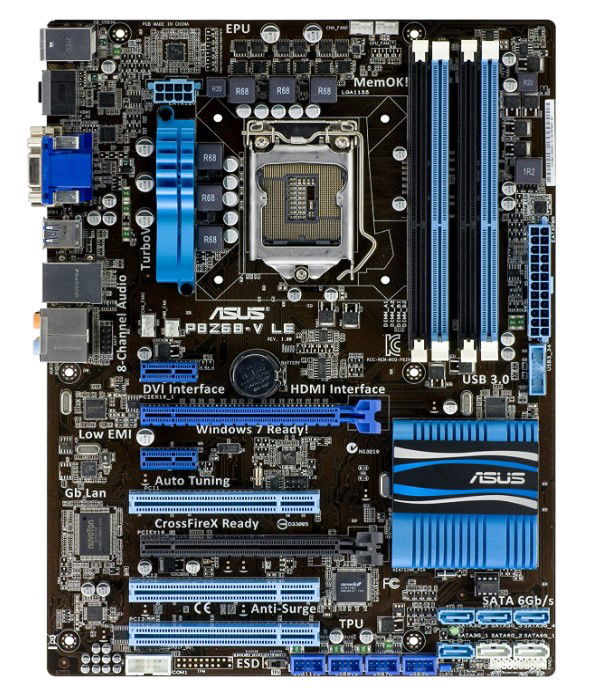

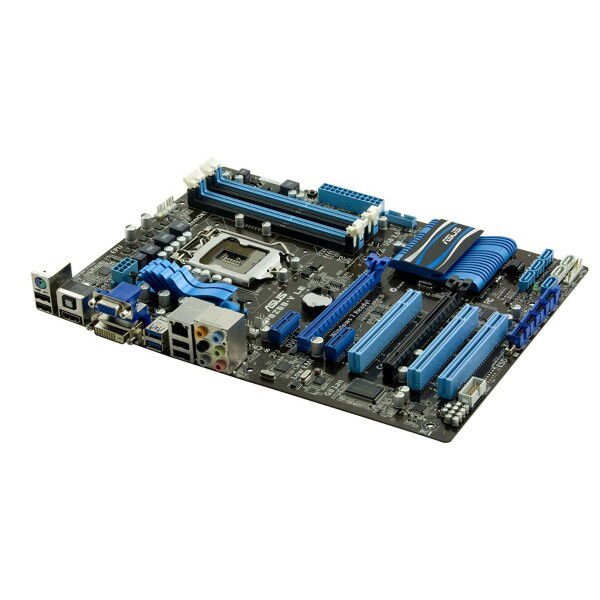

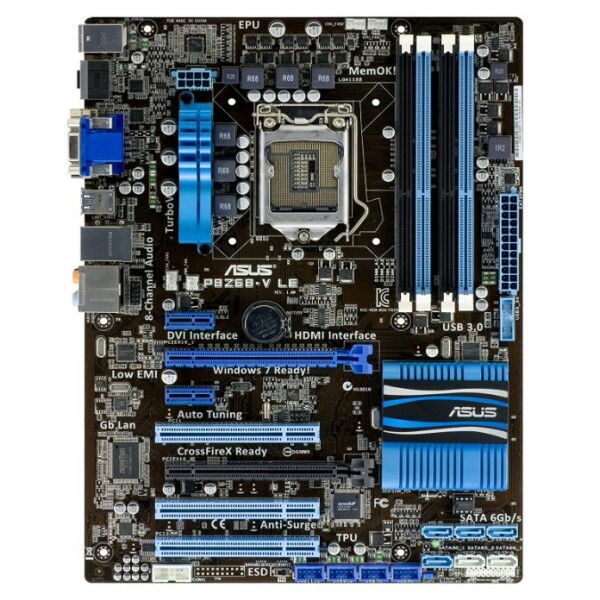

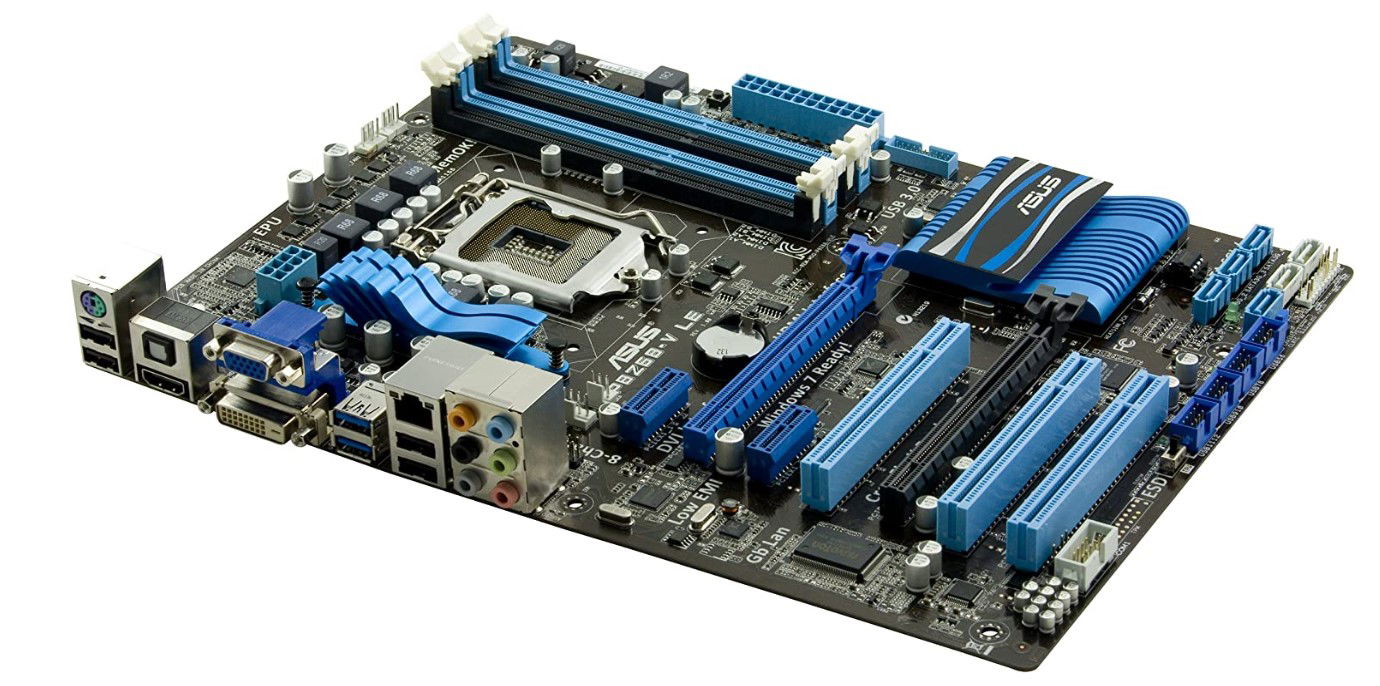

Product:P8Z68-V LE
Socket:Socket 1155
Category: motherboards
Brand: ASUS
EAN: 0610839181780, 4719543181782
Condition: Used
SKU: 90-MIBGS0-G0EAY0KZ, P8Z68-V LE
Warranty: 6 months
Package contents:
– Motherboard (P8Z68-V LE)
– Backplate (blende)
– No manual
– No driver CD
– No cables
CPU
LGA1155 socket for Intel® Second Generation Core™ i7 / Core™
i5 / Core™ i3 processors
Supports 32nm CPU
Supports Intel® Turbo Boost technology 2.0
Chipset
Intel® Z68 Express Chipset
Memory
4 x DIMMs, max. 32GB, DDR3 2200(O.C.)* / 2133(O.C.) / 1866
(O.C.) / 1600 / 1333 / 1066 MHz, non-ECC, un-buffered memory
Dual-channel memory architecture
Supports Intel® Extreme Memory Profile (XMP)
Graphics
Multi-VGA output support: HDMI and DVI-D, RGB port
– Supports HDMI with max.resolution up to 1920 x 1200 @60Hz
– Supports DVI with max. resolution up to 1920 x 1200 @60Hz
– Supports RGB with max. resolution up to 2048 x 1536 @75Hz
– Maximum shared memory of 1748MB
Support LucidLogix® Virtu – Universal Switchable Graphics Solution
– i – Mode: display should connect to Sandy Bridge motherboard video output
– d – Mode: display should connect to the discrete GPU installed in the system
Multi-GPU support
Supports ATI® Quad-GPU CrossFireXTM Technology
Expansion slots
2 x PCI Express 2.0 x16 slots (blue @ x16 mode, black @ x4 mode)
2 x PCI Express 2.0 x1 slots
3 x PCI slots
* The PCIe x 16_2 slot shares bandwidth with PCIe x1_1 slot, PCIe x1_2 slot.
Storage
Intel® Z68 Express Chipset:
– 4 x Serial ATA 3.0 Gb/s connectors
– 2 x Serial ATA 6.0 Gb/s connectors
– Intel® Rapid Storage Technology supports RAID 0, 1, 5 and 10
– Support Intel® Smart Response Technology in Windosw Vista/7
LAN
Realtek® 8111E Gigabit LAN controller
Audio
Realtek® ALC892 8-channel High Definition Audio CODEC
– BD Audio Layer Content Protection
– Supports Jack-Detection, Multi-streaming and Front Panel Jack-Retasking
– Optical S/PDIF out ports at back I/O
USB
2 x ASMedia USB 3.0 controllers
– 2 x USB 3.0 ports at mid-board for front panel support (blue)
– 2 x USB 3.0 ports at back panel (blue)
Intel® Z68 Express Chipset
– 12 x USB 2.0 ports (8 ports at mid-board, 4 ports at back panel)

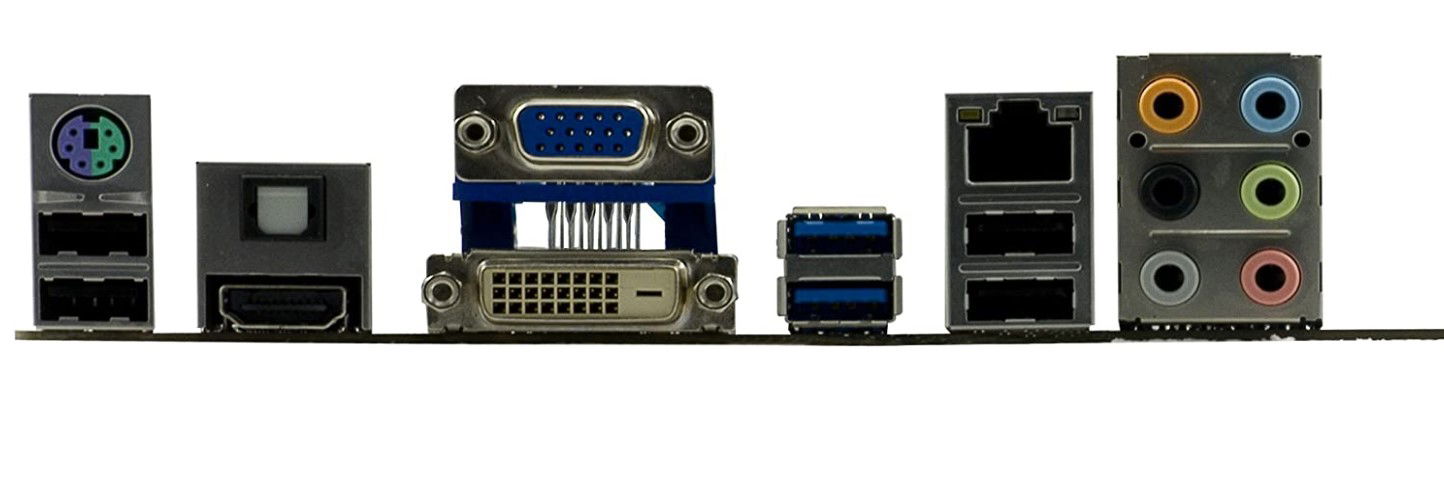

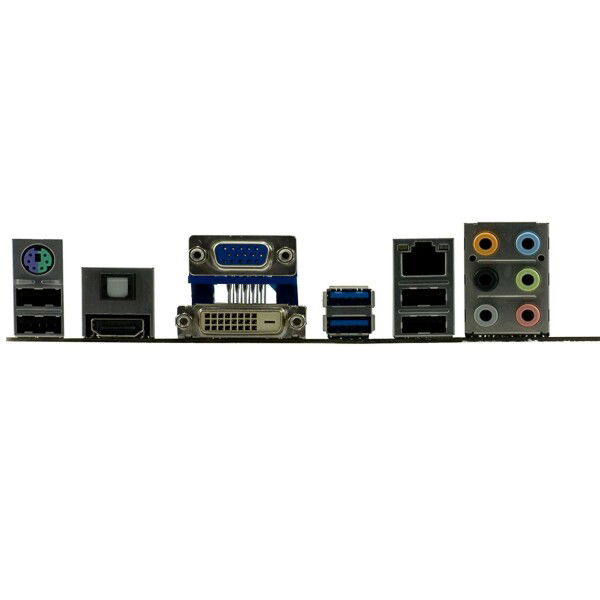

Rear panel ports
1 x PS/2 keyboard / mouse combo port
1 x Optical S/PDIF out port
1 x HDMI port
1 x DVI port
1 x RGB port
1 x LAN (RJ-45) port
2 x USB 3.0/2.0 ports
4 x USB 2.0/1.1 ports
8-channel audio I/O ports
Internal connectors/
switches/ buttons
1 x USB 3.0/2.0 connector supports additional 2 USB ports (19-pin)
4 x USB 2.0/1/1 connectors support additional 8 USB ports
2 x SATA 6.0Gb/s connectors (gray)
4 x SATA 3.0Gb/s connectors (blue)
1 x COM port connector
1 x CPU Fan connector (4-pin)
2 x Chassis Fan connectors (4-pin)
1 x Power Fan connector (3-pin)
Front panel audio connector
1 x S/PDIF Out Header
24-pin EATX Power connector
8-pin EATX 12V Power connector
System Panel
1 x MemOK! Button
1 x TPU (GPU Boost) switch
BIOS features
64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM
BIOS 2.5, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2,
ASUS CrashFree BIOS 3, F12 PrintScreen Function
Manageability
WfM 2.0, DMI 2.0, WOL by PME, WOR by PME, PXE
Accessories
1 x I/O-Shield
Form factor
ATX Form Factor, 12”x 9” (30.5cm x 22.9cm)
