Description

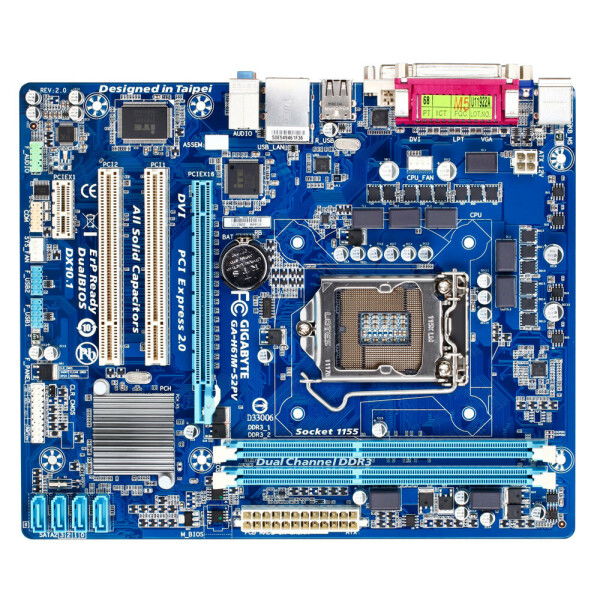

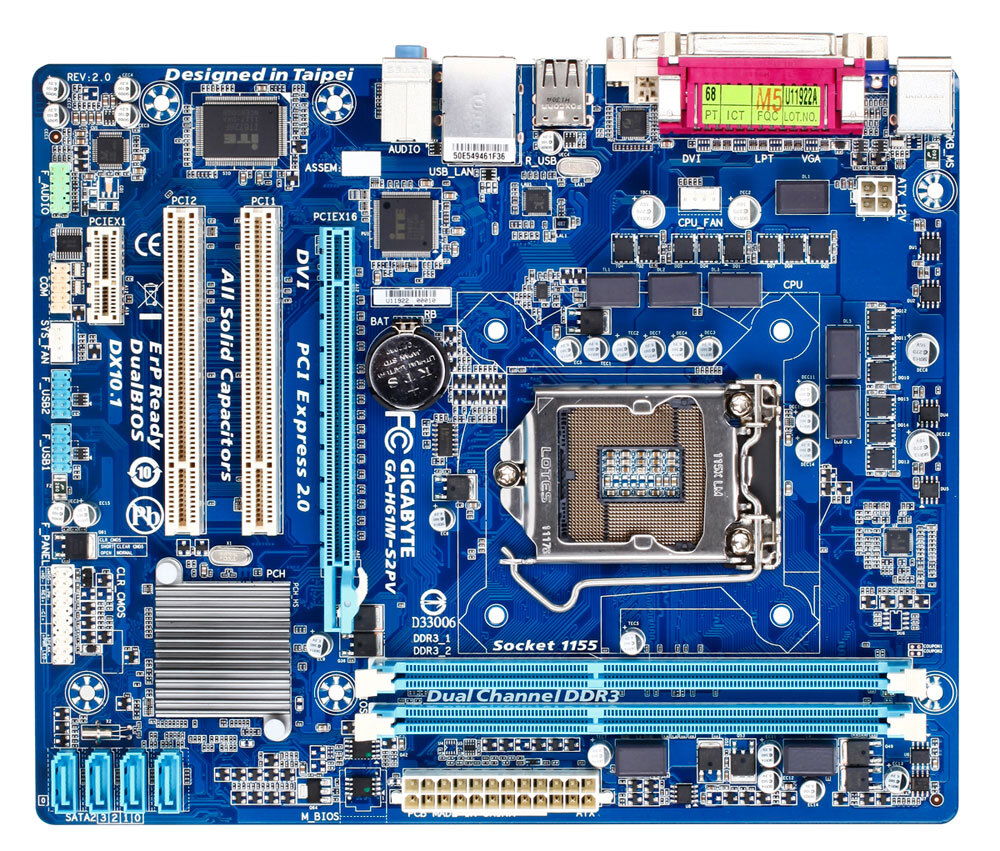

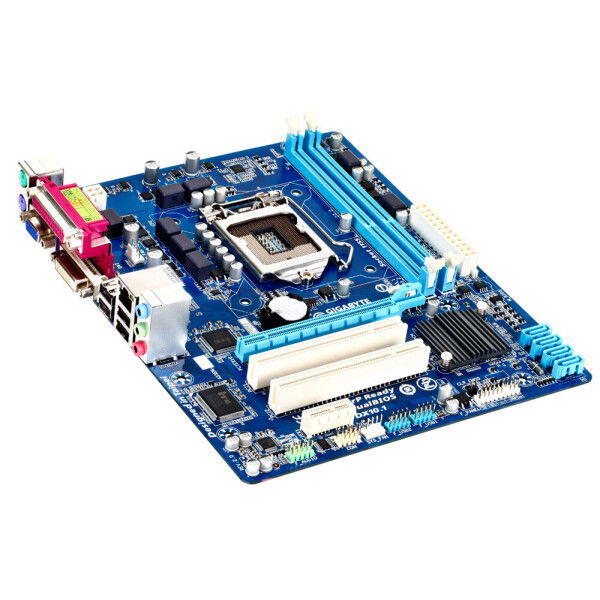

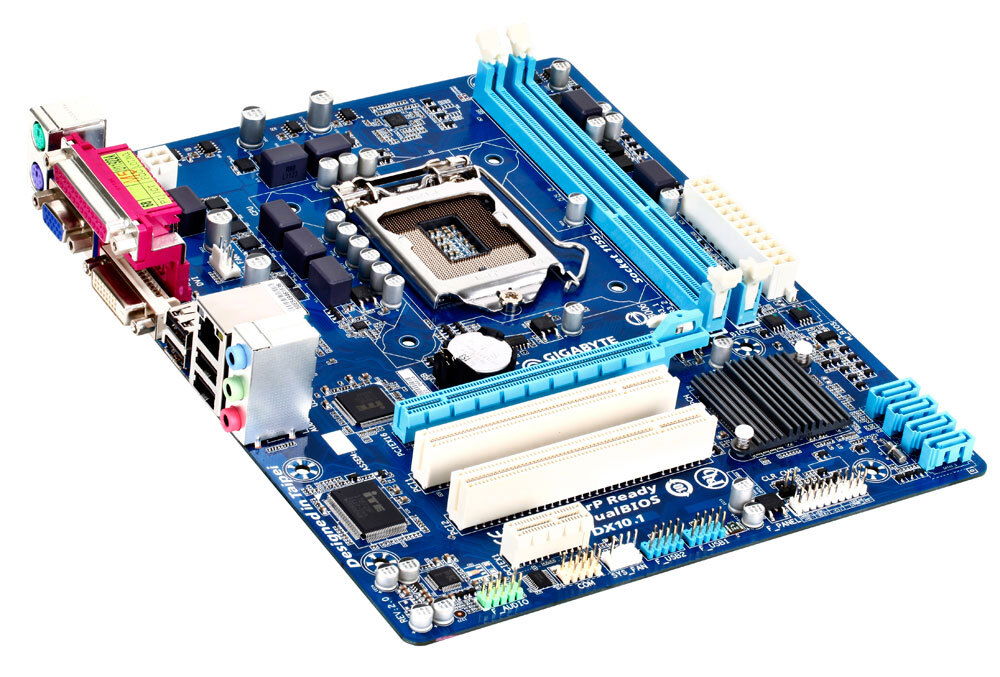

The Gigabyte GA-H61M-S2PV motherboard is a Micro-ATX motherboard with space for 2 DDR3 memory modules, with a maximum of 16GB. The Gigabyte GA-H61M-S2PV motherboard features PCI, PCI-e x1 and PCI-e 3.0 x16 slots.
Specifications: motherboard | LGA1155 | Intel H61 chipset | PCI | PCI-e 2.0 x1 | PCI-e 3.0 x16 | 8x USB 2.0 | 4x USB 3.0 | DVI-D | VGA (D Sub)
Product: GA-H61M-S2PV
Socket: LGA1155
Category: Motherboards
Brand: Gigabyte
Condition: Used. equipped with the latest available BIOS version
EAN: 0818313014153, 0818313016898, 4719331845179
SKU: GA-H61M-S2PV
Warranty: 6 months
Drivers for the Asus GA-H61M-S2PV
Processors Supported by the GA-H61M-S2PV
package content:
– Motherboard (GA-H61M-S2PV)
– Backplate (Blende)
– No manual
– No driver CD
– No cables
CPU
Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/ Intel® Core™ i3 processors/Intel®< /sup> Pentium® processors/Intel® Celeron® processors in the LGA1155 package
L3 cache varies with CPU
Chipset
Intel® H61 Express Chipset
Memory
– 2 x 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory
* Due to Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than 4 GB.
– Dual channel memory architecture
– Support for DDR3 1333/1066/800MHz memory modules
– Support for non-ECC memory modules
Onboard Graphics
1 x D-Sub port
1 x DVI-D port, supporting a maximum resolution of 1920×1200
* The DVI-D port does not support D-Sub connection by adapter.
Audio
Realtek ALC887 audio codec
High Definition Audio
2/4/5.1/7.1 channel
* To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
LAN
1 x Atheros 8151 LAN chip (10/100/1000 Mbit)
Expansion Slots
– 1 x PCI Express x16 slot, running at x16
(The PCI Express x16 slot conforms to PCI Express 3.0 standard.)
* PCIE Gen.3 is dependent on CPU and expansion card compatibility.
– 1 x PCI Express x1 slot
(The PCI Express x1 slot conforms to PCI Express 2.0 standard.)
– 2 x PCI slots
Multi-Graphics Technology
– Support for AMD CrossFireX™ technology
Chip set:
-4 x SATA 3Gb/s connectors supporting up to 4 SATA 3Gb/s devices
USB Chipset:
– Up to 8 USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors
1 x 24-pin ATX main power connector
1 x 4-pin ATX 12V power connector
4 x SATA 3Gb/s connectors
1 x CPU fan header
1 x system fan header
1 x front panel header
1 x Front Panel Audio Header
2 x USB 2.0/1.1 headers
1 x serial port header
1 x Clear CMOS jumper

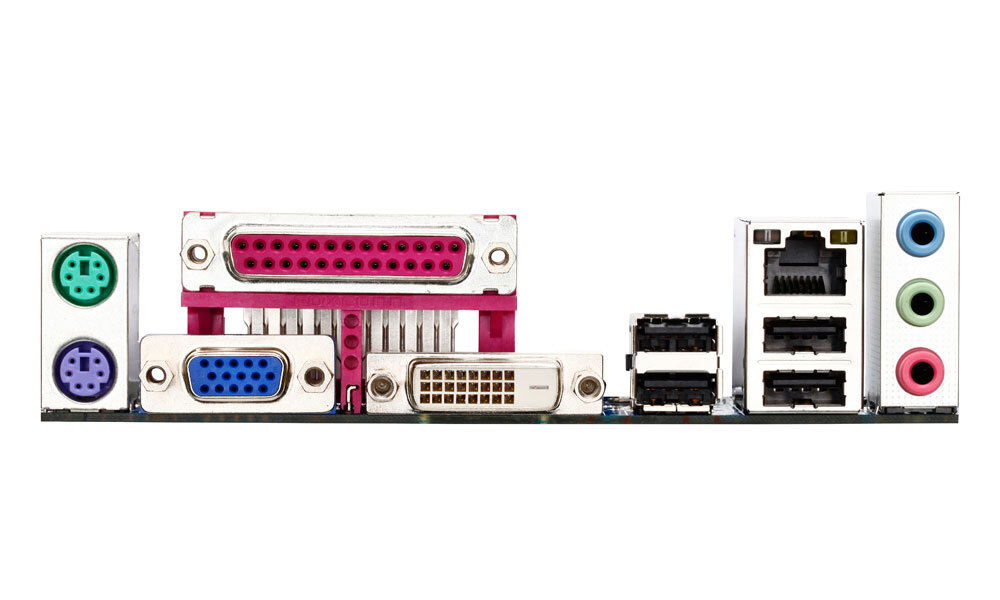

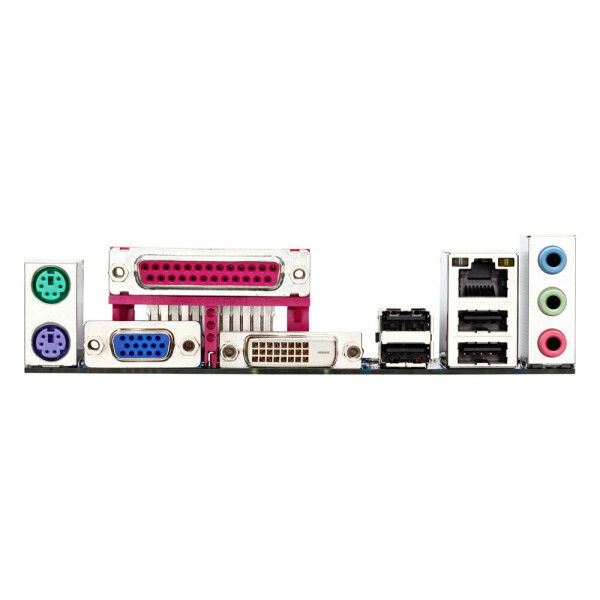

Back Panel Connectors
1 x PS/2 keyboard port
1 x PS/2 mouse port
1 x parallel port
1 x D-Sub port
1 x DVI-D port
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks (Line In/Line Out/Microphone)
I/O Controller
iTE IT8728 chip
H/W Monitoring
System voltage detection
CPU/System temperature detection
CPU/System fan speed detection
CPU overheating warning
CPU/System fan fail warning
CPU/System fan speed control
* Whether the CPU/System fan speed control function is supported will depend on the CPU/System cooler you install.
BIOS
2 x 32 Mbit flash
Use of licensed AMI EFI BIOS
Support for DualBIOS™
PnP 1.0a, DMI 2.0, SM BIOS 2.6, ACPI 2.0a
Unique Features
– Support for @BIOS
– Support for Q-Flash
– Support for Xpress Recovery2
– Support for EasyTune
* Available functions in EasyTune may differ by motherboard model.
– Support for ON/OFF Charge
Operating System
Support for Windows 10/8.1/8/7
Form Factor
– Micro ATX Form Factor; 24.4cm x 20.0cm
