Description
MSI X58 Pros: Motherboard | LGA1366 / Sockel B | ATX | Intel X58 Chipset | 6 x DDR3 up to 24GB | Gigabit Ethernet | PCI | PCI-e 2.0 x16 | PCI-e x1 | eSATA | Firewire 400 (6-pin) | USB 2.0 | PATA-133 | SATA-300

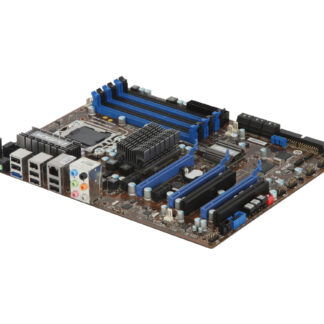

Product: MSI X58 Pro
Socket: Intel LGA1366 / Sockel B
Brand: MSI;
EAN: 4719072104290
SKU: 7522-050
Condition: Used – Bios updated to the latest version
Warranty: 6 Months
package content:
– Motherboard (MSI X58 Pro)
– IO-Shield (backplate/blende)
– no manual
– no driver CD
– no cables
CPU
– Intel® Socket 1366 Core™ i7 Extreme Edition/Core™ i7 Processors
Chipset
– Intel® X58 Chipset
– Supports QPI up to 6.4GT/s
Intel® ICH10R Chipset
– Hi-Speed USB (USB2.0) controller, 480Mb/sec, up to 12 ports.
– 6 SATAII ports with transfer rate up to 3Gb/s.
– PCI Master v2.3, I/O APIC.
– ACPI 2.0 compliant.
– Serial ATA RAID 0/1/5/10.
– Integrated AHCI controller.
Memory
– Supports six unbuffered DIMM or 1.5 Volt DDR3 800/1066/1333*/1600* (OC) DRAM, 24GB Max
– Supports 1Gb/ 2Gb/ 4Gb DRAM size
– Supports x8 / x16 data lines per DIMM
– Supports up to 3 channel mode
Audio
– Chipset integrated by Realtek® ALC889
– Flexible 8-channel audio with jack sensing
– Compliant with Azalia 1.0 Spec
– Measure Microsoft Vista Premium spec
LAN
Supports one PCI Express LAN 10/100/1000 Fast Ethernet by Realtek 8111C.
IEEE 1394
– JMicron® 381 chipset
– Supports up to two 1394 ports. (Rear panel x1, pin header x1)
– Transfer rate is up to 400Mbps.
Slots
– 3 PCI Express gen2 x16 slots
– two dark Blue PCIE x16 slots (PCI_E2 &PCI_E4) support up to PCIE x16 speed, one Blue PCIE x16 slot(PCI_E5) supports up to PCIE x4 speed
– supports ATI® Crossfire™
– 2 PCI Express gen1 x1 slots
– 2 PCI slot, support 3.3V/5V PCI bus Interface
On Board IDE/SATA
One Ultra DMA 66/100/133 IDE controller integrated in JMicron® 363.
– Supports PIO, Bus Master operation modes.
– Can connect up to two Ultra ATA drives.
SATAII controller integrated in ICH10R/JMicron® 363 chipset
– Up to 3Gb/s transfer speed.
– Supports six SATAII ports by ICH10R (SATA1~6)
– Supports one SATAII port by JMicron 363 (SATA7)
– Supports one eSATA port by JMicron 363.
– Supports AHCI controller with SATA RAID 0/1/5/10 by ICH10R.
Connector
– ATX 24-Pin power connector
– 8-pin ATX 12V power connector
– CPU x 1 / System x 3 FAN connectors
– CD-in connector
– Front panel audio connector
– Front panel connector
– 1 x chassis intrusion connector
– 1 x serial port pin header
– 3 x USB 2.0 connectors
– 7 x Serial ATAII connectors
– 1 x ATA133 connector
– 1 x IEEE1394 connector support additional 1 port
– 1 x Reset Button
– 1 x Power Button
– 1 x Clear CMOS Button
– 1 x SPDIF out connector
– 1 x TPM module connector
Rear Panel I/O
– 1 x PS/2 Keyboard
– 1 x PS/2 Mouse
– 1 x eSATA port
– 1 x IEEE1394 port
– 6 x USB 2.0 ports
– 1 x RJ45 LAN Jack
– 1 x 6 in 1 audio jack
– 1 x Optical SPDIF Out
BIOS
– The motherboard BIOS provides “Plug & Play” BIOS which detects the peripheral devices and expansion cards of the board automatically.
– The motherboard provides a Desktop Management Interface(DMI) function which records your motherboard specifications.
Accessories
– I/O Shield
Form Factor
– ATX Form Factor
– 12 inches x 9.6 inches (30.5 cm x 24.4 cm)
