Description

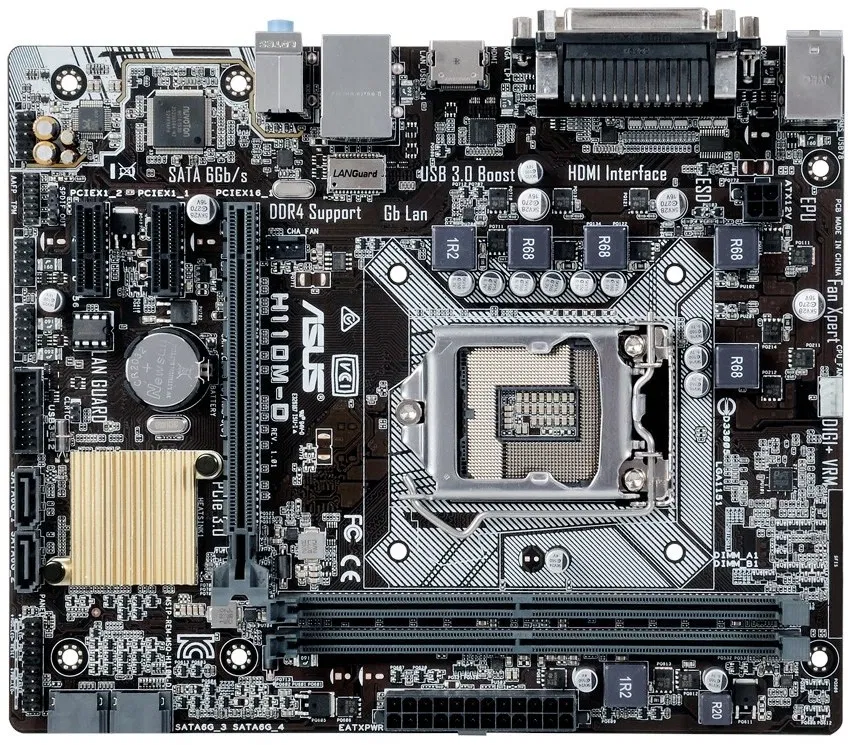

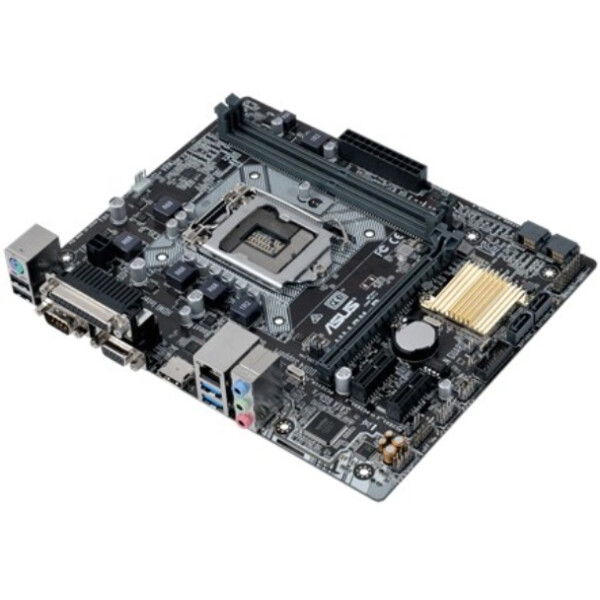

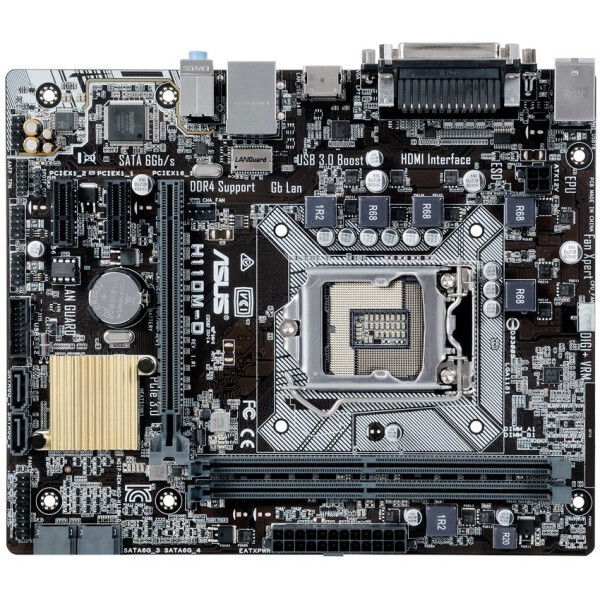

De Asus H110M-D is een Micro ATX Socket 1151 moederbord gebaseerd op de Intel H110 chipset. Het bord dient gecombineerd te worden met DDR4 geheugen, waarvoor 2 sloten beschikbaar zijn. De onboard geluidskaart biedt 7.1 kanaals geluid en is gebaseerd op een Realtek ALC887 chip.
Eigenschappen: Moederbord – M-ATX | Socket 1151 6th, 7th Gen | DDR4 | Intel® H110 Chipset | VGA (D-Sub)| HDMI | USB 3.0 | USB2.0 | PCI-e 3.0 x1 | PCI-e 3.0 x16 | Sata-600
Klik hier voor de ondersteunende CPU’s
Klik hier voor de drivers
Product: Asus H110M-D
Socket: Socket 1151
Geschikt voor: 6e en 7e generatie processoren
Categorie: Moederborden
Merk: ASRock
EAN: 4054842098134, 4712900284409
Staat: Used, laatste bios versie is geinstalleerd
SKU: 90MB0PY0-M0EAY0, H110M-D
Garantie: 6 Maanden
pakketinhoud:
– Moederbord (Asus H110M-D)
– IO-Shield (blikken achterplaatje)
– geen handleiding
– geen driver-cd
– geen kabels
CPU
LGA1151 socket for 6th Generation Intel® Core™ i7 / i5 / i3, Pentium®, and Celeron® processors
Supports Intel® 14nm CPU
Supports Intel® Turbo Boost Technology 2.0*
* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
** Refer to www.asus.com for Intel® CPU support list.
Chipset:
Intel® H110 Express Chipset
Memory
2 x DIMM, maximum 32 GB, DDR4 2133 MHz, non-ECC, un-buffered memory*
Dual-channel memory architecture
Supports Intel® Extreme Memory Profile (XMP)
* Refer to www.asus.com for the latest Memory QVL (Qualified Vendors List).
** Due to Intel® chipset limitation, DDR4 2133 MHz and higher memory modules on XMP mode will run at the maximum speed of DDR4 2133 MHz.
Expansion slots
1 x PCI Express 3.0/2.0 x16 slot (at x16 mode)
2 x PCI Express 2.0 x1 slots
Graphics
ntegrated graphics processor – Intel® HD Graphics support Multi-VGA output support: HDMI, D-SUB ports
– Supports HDMI with maximum resolution of 4096 x 2160 @ 24Hz / 2560 x 1600@60Hz
– Supports D-SUB with maximum resolution of 1920 x 1200 @ 60Hz
Supports Intel® InTruTM 3D, Quick Sync Video, Intel® Clear Video HD Technology, and Intel® InsiderTM
Maximum shared memory of 1024 MB
Storage
Intel® H110 Express Chipset and Intel Rapid Storage Technology 14 support*
– 4 x SATA 6.0 Gb/s connectors
* This function works depending on the type of CPU installed.
LAN
Realtek® 8111H Gigabit LAN supports LANGuard
Audio
Realtek® ALC887 8-channel High Definition Audio CODEC
– Supports Jack-Detection and Front Panel Jack-Retasking Gaming Audio
– LED illuminated design: Brightens up your build with the gorgeous illuminated audio trace path.
– Audio shielding: Ensures precision analog/digital separation and greatly-reduced multi-lateral interference.
– Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of sensitive audio signals.
– Premium Japanese-made audio capacitors: Provide warm, natural, and immersive sound with exceptional clarity and fidelity.
* Use a chassis with HD audio module in the front panel to support an 8-channel audio output.
USB
Intel® H110 Express Chipset – supports ASUS USB 3.0 Boost
– 4 x USB 3.0/2.0 ports (2 ports at mid-board; 2 ports at the rear panel)Intel® H110 Express Chipset
– 6 x USB 2.0/1.1 ports (4 ports at mid-board; 2 ports at the rear panel)

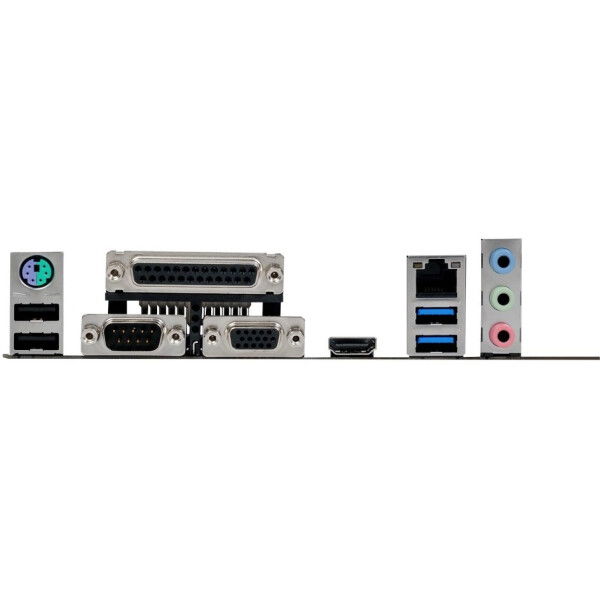

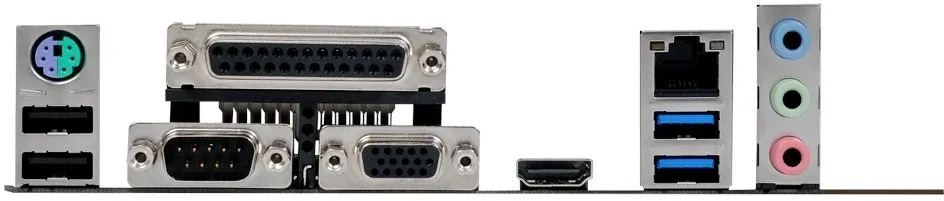

Rear panel I/O ports
1x PS/2 Keyboard/mouse combo port
2x USB 3.0/2.0 ports
2x USB 2.0/1.1 ports 1 x HDMI port
1x D-SUB port
1x LAN (RJ-45) port 1 x LPT port
1x COM port
3x Audio jacks support 8-channel audio output*
* Use a chassis with HD audio module in the front panel to support a 8-channel audio output.
Internal connectors
1x USB 3.0 / 2.0 connector supports additional 2 USB 3.0/ 2.0 ports (9-pin)
2x USB 2.0 / 1.1 connectors support additional 4 USB 2.0/ 1.1 ports
4x SATA 6.0 Gb/s connectors
1x 4-pin CPU fan connector for 4-pin PWM mode
1x 4-pin Chassis fan connector for 4-pin PWM & DC mode 1 x Front panel audio connector (AAFP)
1x S/PDIF out connector
1x 24-pin EATX power connector 1 x 4-pin ATX 12V power connector 1 x TPM connector
1x System panel connector
BIOS features
128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI 3.0, WfM2.0, SM BIOS 3.0,
ACPI 5.0, Multi-language BIOS, ASUS EZ Flash 3, ASUS CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Quick Note, Last Modified Log, F12 PrintScreen function, and ASUS DRAM SPD (Serial Presence Detect) memory information
Manageability WfM 2.0, DMI 3.0, WOL by PME, PXE
OS
support Windows® 10 (64-bit)
Windows® 8.1 (64-bit) Windows® 7 (32-bit / 64-bit)*
* Please refer to ASUS website and download “Window® 7 installation guide” and “ASUS EZ installer” to install Windows® 7.
Form factor
uATX form factor: 8.9 in. x 7.3 in. (22.6 cm x 18.5 cm)
